PDI L4系列石英晶體振蕩器

發布時間：2024-10-09 09:44:32 瀏覽：1642

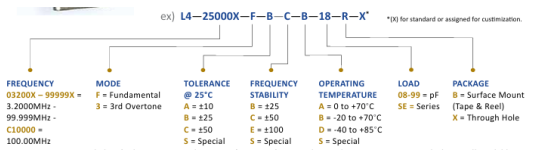

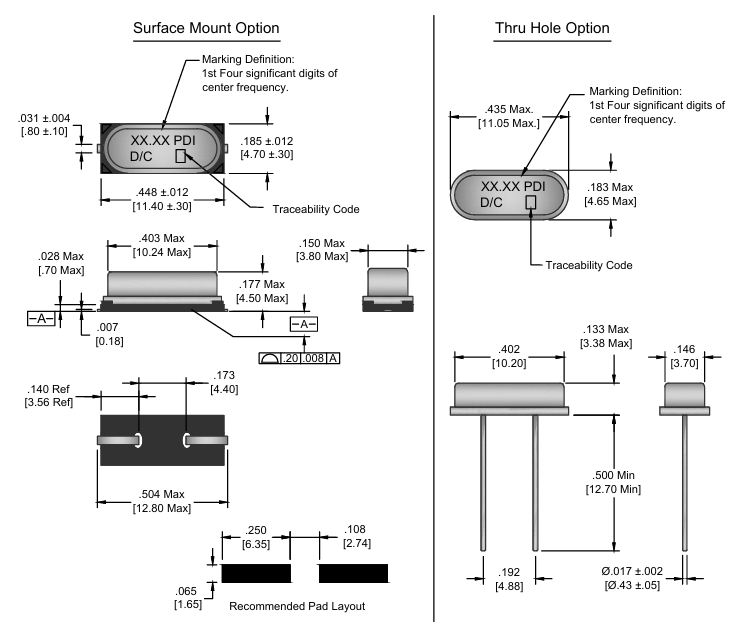

　　PDI L4系列的石英晶體振蕩器采用密封的石英晶體，提供電阻焊接的表面貼裝(SMD)和通孔(Through Hole)封裝，同時PDI提供了定制服務，客戶可以根據自己的需求選擇標準頻率或定制頻率，以及定制參數。

PDI L4系列石英晶體振蕩器

　　規格：

Parameter		Mode
Parameter		Fundamenta	3rd 0vertona	Units
Frequency Range*?		3.200000 to 50.000000	35.000000 to100.000000	MHz
Frequency Tolerance	回+25*℃	Per Option		ppm
Temperature Range*	Operating	Per Option		℃
Temperature Range*	Storage	-55 to+125		℃
Frequency Stability	Over Operating Temperature	Per Option		ppm
Equivalent Series Resistance (Maximum)	3.200000 to 3.579000 MHz	250	N/A	Q
	3.579000 to 4.000000 MHz	150	N/A
	4.000000 to 5.000000 MHz	120	N/A
	5.000000 to 6.000000 MHz	100	N/A
	6.000000 to 7.000000 MHz	80	N/A
	7.000000 to 10.000000 MHz	60	N/A
	10.000000 to 14.000000 MHz	50	N/A
	14.000000 to 20.000000 MHz	40	N/A
	2.20.000000 MHz	30	N/A
	24.000000 to 35.000000 MHz	N/A	100
	2.35.000000 MHz	N/A	80
Drive Level(Typical)		100		uW
Shunt Capacitance(Maximum		5.0		pF
Load Capacitance (Typical)		Per Option		pF
Aging(Maximum)	Per Year	±5.0		Ppm
Seal Method		Resistance Weld
Insulation Resistance		500MQ Minimum @100Vdc±15V
*1-Not all Frequēncy/Stability/Temperature combinations are available.
